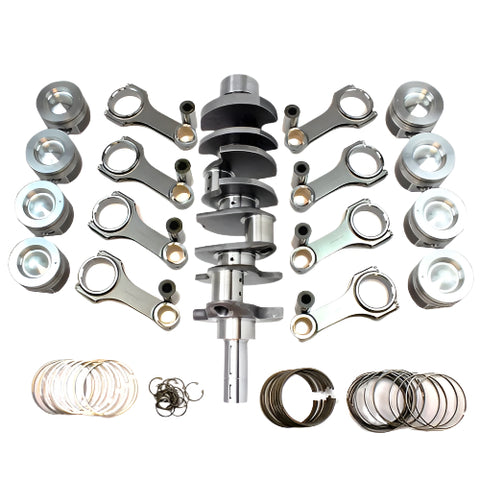

DmaxStore Stage 2 (Fully Balanced) Rotating Assembly 1000+HP, 2001-2016 LB7/LLY/LBZ/LMM/LML

Part# DMS-RA-2-BALANCED-LB7+930036055+CST6418MS0LCAX

$6,379.92 Includes Free Shipping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.Ca.Gov

Fits: 2001 thru 2016 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM/LML Duramax Diesel

*60-90 day leadtime*

The DmaxStore Stage 2 Balanced Rotating Assembly is built for customers doing some heavy towing with high horsepower or the race/sled puller running around the 1000 HP mark. Even if the power goals are much less, this assembly can offer peace of mind for those who abuse their engines or like to have some fun at the track on the weekends. This kit comes Fully Balanced.

Includes:

  • Callies DuraStar Crankshaft (Part# D333M81-CS)
    • Rated up to ​1200HP
    • Callies Durastar crankshafts are designed to be substantially stronger than OEM shafts currently found in GM’s popular Duramax diesel. This improvement is the result of substantially stronger steel, considerably deeper nitride layer and unique machining features.
  • Carrillo Pro-H 9321 Connecting Rods (Part# GM_B66DM_0HS_6418B7H)
    • ​Rated up to 1800HP
    • The Carrillo 6.6L Duramax Pro-H Connecting Rod With H-11 Bolts is a must have in your 2001-2010 GM 6.6L Duramax engine build. Since 1963, Carrillo is recognized as the preeminent custom connecting rod manufacturer in the world. Carrillo has provided custom and prototype connecting rods to virtually every major automotive and motorcycle venue, most notably to the high performance and speed equipment industry.
    • Carrillo uses proprietary chrome, nickel, moly, vanadium alloy which meets all VAR (vacuum arc re-melt ASTM standards). The heat is validated, both by the supplier and an independent metallurgist whom confirm the desired physical and chemical properties of steel. All heat treat processes are via a mar-aged operation, resulting in UTS of 195,000 with a yield of 182,000 while maintaining the critical elements of low notch-sensitivity and ductility.
    • All Carrillo connecting rods are manufactured from an oversized forging resulting in the proper grainflow as well as the surface removal of any potential inclusions or surface conversions generated by the forging process. All critical CNC machines at Carrillo are equipped with probing to accurately validate dimensional integrity. In the production process each part is magnafluxed at least twice, further each piece is Rockwell tested to validate the heat treat procedure. A final shotpeen operation completes the part. This connecting rod comes with H-11 bolts and is for use in a wide range of applications.
  • Mahle Motorsports Performance Cast Piston Kit
    • ​Rated up to 1000HP
    • Designed for street/strip or pulling trucks making 400-1000HP that still get used as a daily driver or work truck. Machined from OE castings (retaining the cast iron ring insert) to give the same drivability and longevity of a replacement piston with additional strength necessary for modified engines. These Pistons are built for customers looking to get 100,000+ miles on a high horsepower application. Unlike some of the higher HP forged pistons which need to be replaced every 20,000 to 30,000 miles, these Mahle Pistons are built to last.
    • Application Guide:
      • Trucks running Camshafts that do not require Piston Valve Reliefs
        • 930036055: Stock 4.055 Bore (403 Cubic Inch)
        • 930036075: .020 over, 4.075 Bore (407 Cubic Inch)
        • 930036095: .040 over, 4.095 Bore (411 Cubic Inch)
      • Please contact our sales team if you are running a Cam shaft requires Piston Valve Reliefs
  • Mahle/Clevite Performance Connecting Rod Bearing Set/Pair (Part# CB-1805H)
  • Billet Steel FlexPlate (Part# SD-BILLET-FLEX)
    • Billet 1 Piece Flexplates are lighter and stronger than stock
    • They Meet the new SFI 29.3 specification for competition use
  • ATI Super Damper (Part# 917369)
    • Free up some horsepower while prolonging your diesel’s crankshaft life.Keep damaging crank harmonics away. ATI Super Harmonic Dampers are proven to be 30 percent more effective than stock dampers. That means a smoother running engine with improved power output—up to 12 more horsepower. ATI Super Harmonic Dampers are also re-buildable and tunable by replacing, removing, and adjusting the elastomer strips. And, since the damper bolts right to the crank hub, the timing marks are always in the same spot. So, when the marks start to move, you know it’s time to replace the elastomer strips.

Optional Parts:

  • Stage 1 Callies Durastar AFO Camshaft (Part# DMAX-270-009)
    • ​Alternate Firing Order
    • No Piston Valve Relief Needed!
    • The main reason for modifying the Duramax firing order with the camshaft is to relieve stress on the front portion of the crankshaft in higher performance applications. The OEM firing order ends at Cylinder #3 and then continues from the beginning through cylinders 1 and 2. The Duramax Cranks see the most strain and tend to break right behind the first rod throw at the intersection of the second main journal (the snout). We have seen failures on anything from mildly modified daily drivers to all-out competition trucks. The Duramax engine Harmonics become too stressful on the cranks when getting into the higher RPM ranges and bigger power levels with the OEM firing order. With this DuraStar Alternate Firing Camshaft, cylinders 1, 2, and 3 are moved away from each other to distribute the stress of combustion more evenly and help reduce the abuse to your crankshaft.
  • DmaxStore Performance Bolt Kits
  • DmaxStore Performance Crankshaft Gear

DmaxStore Notes:

  • Does NOT include main bearings or thrust washer set
  • We recommend sourcing main bearings/thrust washers through your machine shop
  • Thrust washers should be hand fit for proper clearances prior to assembly by your machine shop
  • NOT LEGAL FOR SALE OR USE IN CALIFORNIA. THE MANUFACTURE, SALE, OFFER FOR SALE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)
  • This product is ONLY designed for closed course racing where it is legal to do so. Any other use will be in violation of local, state, and federal laws. We are not responsible for unlawful use of this product.
