Fits: 2020 thru 2023 Chevy Silverado/GMC Sierra 1500 LM2/LZ0 Duramax Diesel

More than a leveling kit, this 3.5" kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.

Features:

• High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
• Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
• Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
• Maintains ride and handling characteristics with clearance for larger tires.
• 2" rear lift blocks and heavy duty u-bolts to level the stance.
• Optional Nitro Series or FOX 2.0 Adventure Series gas rear shocks to improve performance.
• Steering Stops included for larger wheel/tire combinations.

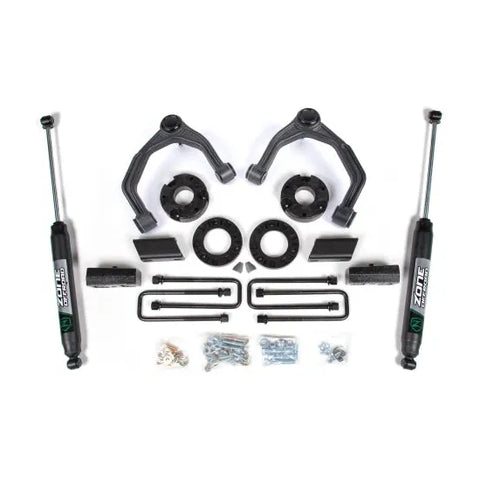

Includes:

• Upper control arms
• Strut spacers
• Rear lift block & U-Bolt kit

Notes:

• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
• Do not exceed wheel backspacing of 5.5" as it will cause clearance issues with UCA.
• Minor cutting of the factory droop limiter required to allow for the increased travel of replacement Upper Control Arms.
• Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• Will NOT fit Denali and High Country models with Adaptive Ride Control (ARC).
• Will NOT fit Trail Boss/ AT4 models.
• This kit has not been test fitted on Silverado ZR2 or Sierra AT4X models at this time.
• Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.
• 2022 model years, This system has not been tested on models equipped with Super Cruise.
