Fits: 2020 thru 2024 Chevy Silverado/GMC Sierra 1500 LM2/LZ0 Duramax Truck

Lift your 1500  with this premium lift kit from McGaughys. Give you the options to raise your truck from 7-9" on some model trucks. This kit comes with everything needed to get the job done.

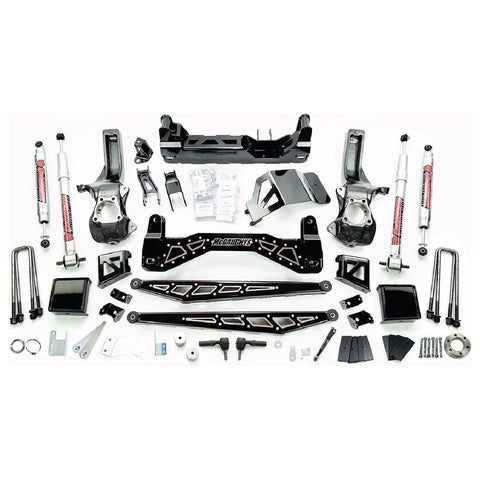

Includes:

• (2) Spindles
• (1) Front Crossmember
• (1) Rear Crossmember
• (2) Compression Struts
• (4) Compression Strut Brackets
• (2) Lift Blocks
• (4) U-bolts & Hardware
• (2) Adjustable Front Struts
• (2) Rear Shocks
• (2) Tie Rod Ends
• (1) All Necessary Brake Line Brackets
• (2) Differential Drop Brackets
• (1) Passenger Side Diff Drop Brace
• (2) Sway Bar Drop Brackets
• (1) Skid Plate
• (8) Stack-able Leaf Spring Shims
• (2) Leaf Spring Center Bolts
• (2) Rear Bump Stops
• (1) Front Drive-Line Spacer w/Bolts
• (1) Front Drive-Line Boot Adaptor w/Clamp

Install Instructions:

• Click here

Notes:

• Lift kit comes powder-coated black w/ stainless steel inserts for front crossmember & compression struts.
• Will NOT fit vehicles that are equipped with the single mono leaf rear suspension. Found on some 2022 & up models.
• DOES NOT fit 4cyl – 2.7l TURBO models or the 4.3l V6 GAS models

• Supplied McGaughy’s Brand front strut, will NOT work with factory Multimatic DSSV struts (found on ZR2 & AT4X models).
• Vehicles equipped with Adaptive Ride Control (ARC), will need additional bracket kit #50799. Lift will only get to 7" if used on ARC vehicles.
• If running this kit at the 9" position, we highly recommend using aftermarket upper control arms. This kit does not come with control arms. Sold separately.
• Spindles and u-bolts are shipped with protective coating on surface. This allows them to be delivered to you without rust. We recommend you clean and paint the parts before you install, to protect against any future rust. Remember, spindles and u-bolts are bare metal. And will rust without paint.
• If you are installing the provided rear lift shims, then you will need purchase and install the rear driveline spacer #50009 (not included with kit)
