Kryptonite Stage 3 Leveling Kit w/ ADS Mesa 2.5 shocks, 2020-2026 LM2/LZ0

Part# ‍KR19STAGE3ADSLM2/LZ0

$3,387.89 Includes Free Shipping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.Ca.Gov

Fits: 2020 thru 2026 Chevy Silverado/GMC Sierra 1500 LM2/LZ0 Duramax Diesel

*Please call for availability*

DmaxStore put together a premium leveling option for your 1500 3.0 Duramax Diesel. Depending on the model truck you have, this kit is designed to lift your truck about 2-3" overall. Perfect amount of lift without sacrificing ride quality.

Address OEM control arm weaknesses with Kryptonite Upper Control Arms, featuring a heavy-duty boxed design, lifetime-warranty ball joints, and provisions for factory ride height sensors and brake line tabs. Proudly made in the USA and backed by a Lifetime Warranty.

Built for durability and off-road performance, these premium shock absorbers feature a UV-stable powder-coated steel body, anodized billet aluminum caps, hard-chrome steel shafts, and 304 stainless steel spacers. Premium synthetic oil and an internal floating piston (IFP) deliver consistent damping and responsiveness, while the 2.50-inch large-bore design helps resist shock fade. Fully rebuildable for long-lasting performance.

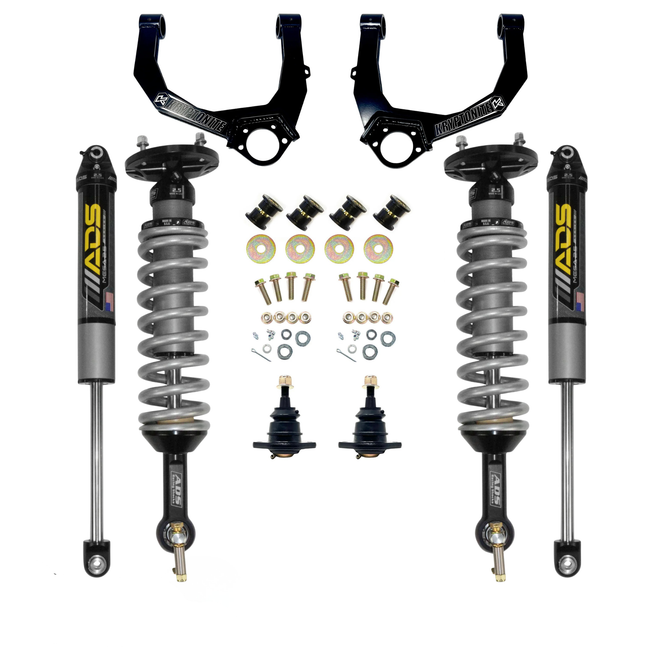

Includes:

  • 1 x Kryptonite Upper Control Arm Pair
  • 4 x Control Arm Sleeves
  • 8 x Control Arm Bushings
  • 2 x Kryptonite Bolt-on Upper Ball Joints

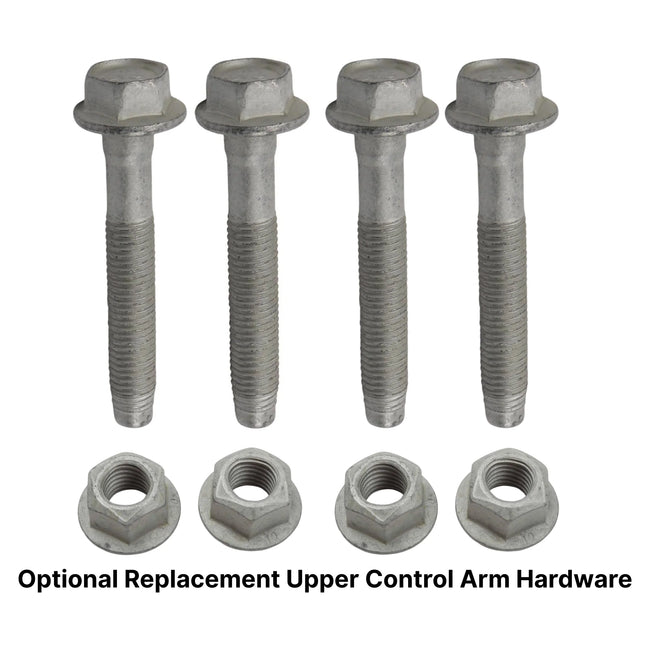

  • 1 x Hardware Package

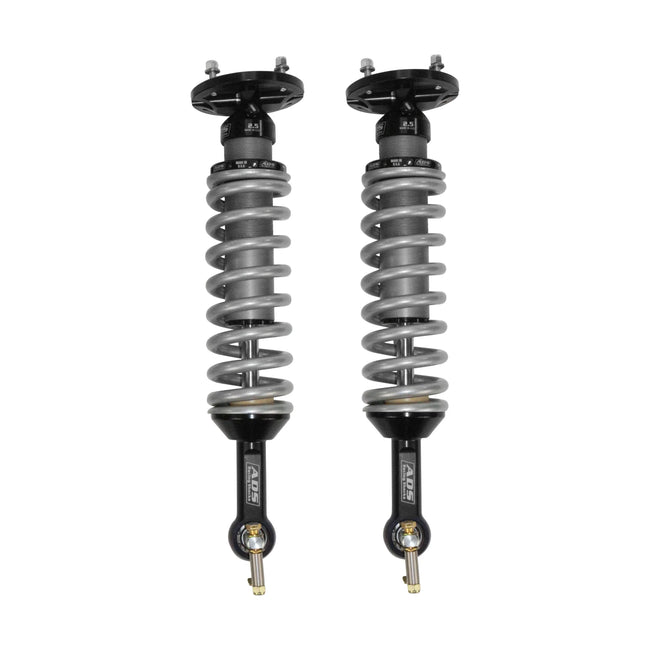

  • ADS Mesa 2.5 Coilovers (100ADS-10281)

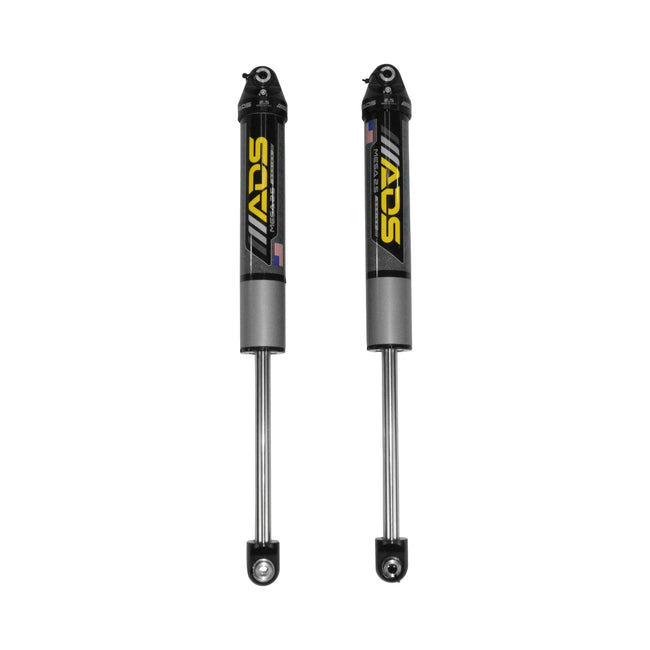

  • ADS Mesa 2.5 Rear Shocks (100ADS-10081)

Notes:

  • This leveling kit gives 2-3” of lift and gives clearance to add up to 33" tires.
  • This kit will work on 2020-2026 models, Non AT4/ZR2 trucks. This kit will give your truck 2-3" of lift.
  • AT4/ZR2 models, this would be a direct replacement shock, but it gives you 1" of adjustment
  • Kryptonite Control Arms paired with OEM wheels will be limited to a maximum tire width of 11.2". (Exceeding an 11.2" tread width will require 5.6" or less in backspacing)
  • Not compatible with vehicles originally equipped with Adaptive Ride Control (ARC)
  • Not compatible with vehicles equipped with Super Cruise
  • Allows clearance for up to a 33” tire (actual fitment may vary based on tire design and wheel specifications)

Warranty:

  • (Kryptonite No Fine Print Lifetime warranty)-Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off-road it, sled pull it, wreck it, lift it, level it, lower it- I think you get it? We don’t care. If you can break it, we will replace it.
  • Your Kryptonite products must be purchased from an authorized dealer and must complete warranty registration within 90 days of purchase. Complete warranty details can be found here.
  • ADS Shocks come with a 1-year limited warranty.
