Fits: 2020 thru 2026 Chevy Silverado 1500/Suburban/Tahoe, GMC Sierra 1500/Yukon/Yukon XL, Cadillac Escalade LM2/LZ0 Duramax Diesel

Are you experiencing P20F8 "Intake Manifold Runner Control (IMRC) Circuit Performance - Bank 1" and P200A "Intake Manifold Runner Performance (Bank 1)" trouble codes in your 3.0L Duramax?

When the intake manifold control actuator's actual values do not match its desired values, the actuator has likely failed. Because the actuator is integrated, the entire intake manifold needs to be replaced. This kit includes the newly updated manifold plus all the hardware, seals, and gaskets needed for the job.

Includes:

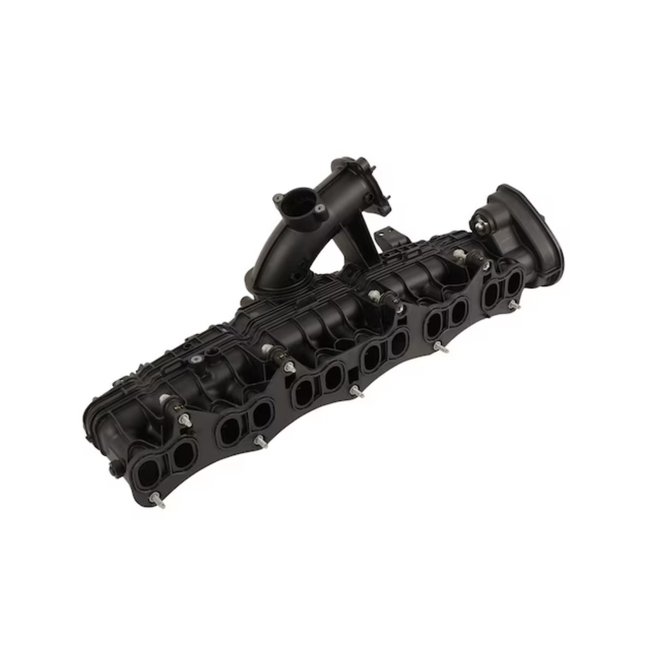

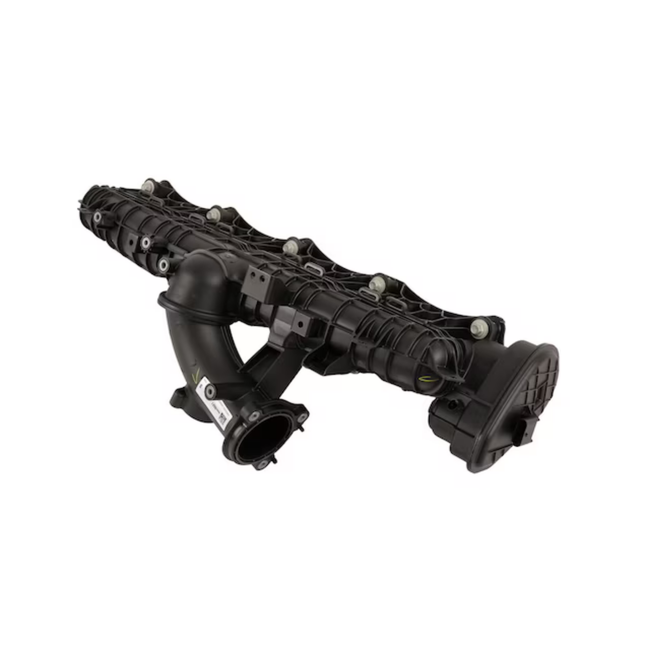

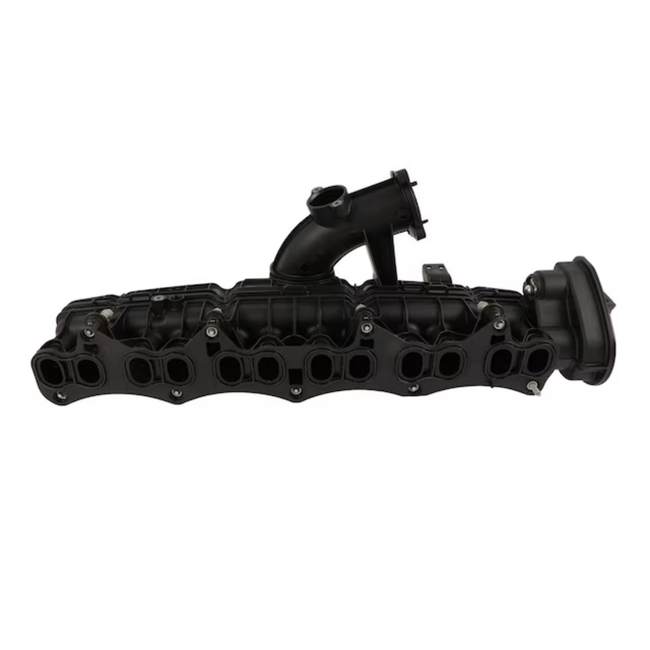

• OEM GM Intake Manifold
• Intake Manifold Gaskets
• Intake Manifold Bolts
• Throttle Body Gasket
• EGR Cooler Inlet Pipe Gasket
• EGR Cooler Inlet Pipe Seal
• Oil Dipstick Tube Seal

Replaces GM Part#:

• 40009057
• 40009229
• 55506343
• 55509559
• 55511544

Notes:

• Some coolant loss will occur when replacing the intake manifold, make sure you have at least a gallon to bleed and top off the cooling system.

• If your truck has higher mileage and the glow plugs have not been replaced, we highly recommend replacing them as they will be easier to access.
