Fits: 2017 thru 2019 Chevy Silverado/GMC Sierra 2500HD/3500HD L5P Duramax Diesel (Requires Tuning)

Finally! A Duramax comes from the factory with a lift pump! Unlike the 2001-2016 trucks, once the L5P was launched, in 2017, they came with a lift pump. This is a great step forward, it still falls a big short, should you plan on hopping up the truck power-wise. The FASS Titanium Signature Series 220GPH will provide enough pressure and volume to support 500-900HP. Not to mention, MUCH better filtration than stock, which is imperative to protect the costly HP4 Injection Pump and Fuel Injectors. Comes with everything you need for install.

REQUIRES CUSTOM AFTERMARKET TUNING: If the truck is not equipped with an aftermarket tune and the ability to delete specific codes, the vehicle will have a MIL after the FASS installation. Consult with your calibration supplier PRIOR to the FASS installation to confirm they are able to delete specific diagnostic codes.

Features:

• New Whisper Technology
• Removes Water, Air and Debris From Diesel Fuel
• 220 Gallons Per Hour Flow Rating at 70-75psi
• Supports 500-900HP
• 2 Micron Filtration Rating
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide and Carbon Dioxide Emissions
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Smoother Engine Idle
• Optional Electric Heater Ports
• Limited Lifetime Warranty

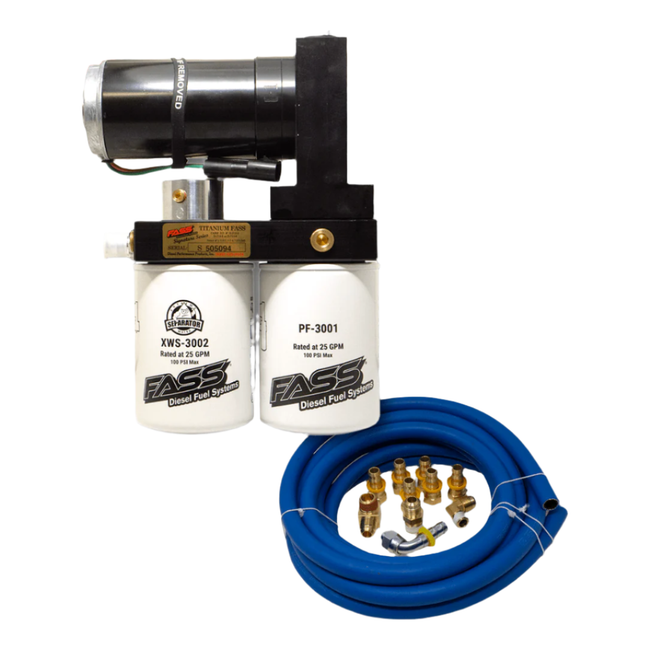

Includes:

• Lift Pump
• Particulate Filter & Water Separator
• Wiring Harness
• Mounting Bracket
• Hardware
• CUSTOM TUNING NOT INCLUDED

DmaxStore Note:

• Custom tuning is 100% required to run this lift pump.
• Want better filtration, and an option with no tuning required? Check out the FASS Drop-In Series Diesel Fuel System (2017-2024 L5P 2500HD/3500HD Duramax)


Warranty:

• Limited Lifetime Warranty upon completion of FASS's REGISTRATION FORM.

INSTALL INSTRUCTIONS (Take note of your pumps manufacturer date to select the correct instructions.)

Additional Information:

WARNING! This system is designed for the 2017-2019 L5P Duramax WITH AFTERMARKET TUNING!! If the truck is not equipped with an aftermarket tune and the ability to delete specific codes, the vehicle will have a MIL after the FASS installation. Consult with your calibration supplier prior to the FASS installation to confirm they are able to delete specific diagnostic codes.

The Titanium Signature Series diesel fuel systems are the superior fuel pump and filtration system, in the diesel industry.  This is because here at FASS Diesel Fuel Systems we focus on perfecting our pumps and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door.  By doing this we have less than a 2% failure rating with our motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems

• FASS Whisper Technology (FWT) was engineered to meet the stringent demands of  today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new pump.  This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.
