Duramax 3.0 LM2 Crate Engine

Part# ‍LM2CRATEENGINE

$0.00

WARNING: Cancer and Reproductive Harm - www.P65Warnings.Ca.Gov

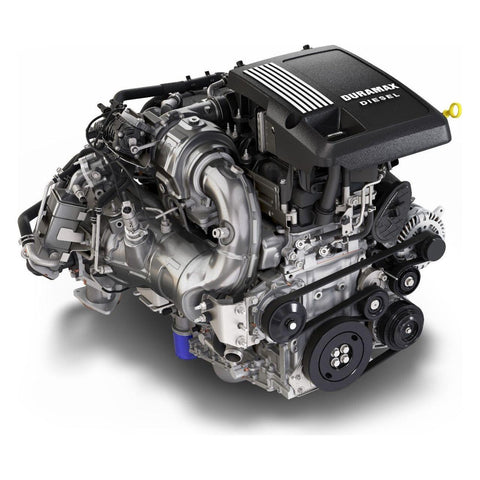

LM2 3.0 Duramax Crate Engine

*COMING SOON!*

Diesel engines have come a very long ways since they were first built in the late 1800s. The first diesel engines were very loud, smokey, and did not smell too pleasing. Nowadays, you could hardly tell the sound difference between gasoline and diesel engines while they are running. Turbo diesel engines are very desirable now because they can produce more power than a gasoline engine, while being very efficient and economic. The 3.0 liter LM2 Duramax engine is a fine example of a modern diesel engine with the perfect balance between fuel economy and power. They are also lighter than most gasoline engines that create similar amounts of power. The Silverado 3.0 liter LM2 owners have already reported well over 30 miles per gallon while producing 277 horsepower and 460 foot pounds of torque. This will make the LM2 Duramax a very popular engine to swap into other platforms. We will update this as more information is available.



Duramax 3.0L DOHC Turbo Diesel Inline 6 Cylinder Specs:

Type:

Duramax 3.0L DOHC Turbo Diesel I6

Bore & Stroke (in. / mm):

3.30 x 3.54 inches (84mm x 90mm)

Block Material:

Aluminum

Cylinder Head Material:

Aluminum

Compression Ratio:

15.0: 1

Firing Order:

1-5-3-6-2-4

Valvetrain:

Dual-overhead camshafts, four-valves per cylinder

Air Delivery:

Single variable-geometry turbocharger; intercooling system. 42.8-psi / 2.95 bar max boost

Fuel Delivery:

High-pressure, common-rail direct injection (36,250 psi / 2500 bar); electronic throttle valve

Ignition System:

Compression

Max Engine Speed:

5100 rpm

Additional Features:

Continuously variable oil pump; engine oil cooler, automatic stop/start, Active Thermal Management,

Emissions Control:

Low-pressure Exhaust Gas Recirculation (EGR); Selective Catalyst Reduction on Filter (SCRF)

Horsepower
(hp / kW @ rpm):

277 / 204 @ 3750 (SAE certified)

Torque
(lb.-ft. / Nm @ rpm):

460 / 624 @ 1500 (SAE certified)
