Driven Diesel Upgraded GM Power Steering Line Kit, 2001-2010 LB7/LLY/LBZ/LMM

Part# DD-DMX-PS-KIT1

$299.95 Includes Free Shipping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.Ca.Gov

Fits 2001-2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM Duramax Diesel

The factory power steering hoses in hydroboost equipped 2001-2010 General Motors 2500/3500 DIESEL pickup trucks are notorious for leaks. From a repair shop perspective, this makes offering a "parts and labor" warranty, even when using OEM parts, nearly impossible.

Drawing on their contacts and experience with custom manufactured tubing and hose assemblies, Driven Diesel has produced a completely new set of replacement power steering hoses that addresses the problems with the OEM parts. They tested with different types of hose and found that Stainless Steel Braid over Teflon hose (like they use in most of their other assemblies) generated an unacceptable level of in-cab noise...noise that is NOT a problem with the non-braided style of hydraulic hose they chose for their production assemblies. They also tested with tubing sections that were permanently crimped as part of the hose assembly and ones where the hose could be disconnected. We wanted to be sure we were providing the best of every option, and they're extremely proud of the final product!

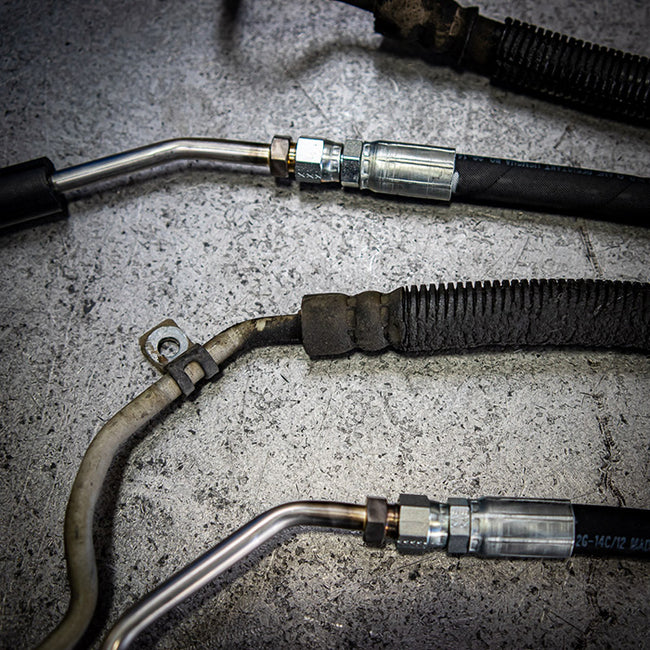

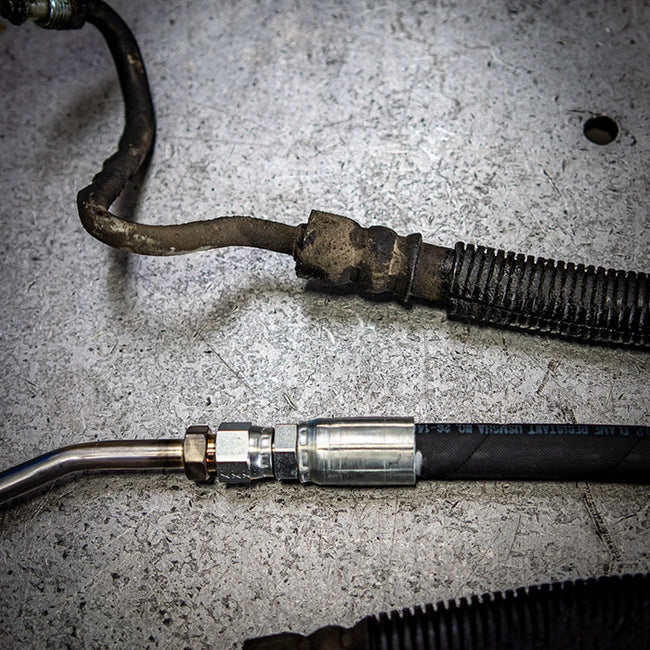

The Driven Diesel power steering hose assemblies are not only manufactured from superior materials, they have been built to be easier to install and serviceable in the unlikely event of a leak. Unlike the factory design, the hydraulic hose is no longer permanently attached to the tubing sections, one of the major downfalls of the stock lines. Instead, the Driven Diesel tubing sections have been fitted with AN fittings, making the hydraulic hose portion of the line removable and replaceable. This aids installation by allowing the tubing sections to be installed independently of the hose and allows replacement of the hydraulic hose without having to purchase the expensive tubing sections again.

If you are looking for a true "once and for all" solution to this extremely common problem...look no further!

Features:

  • 100% Brand New CNC Bent Tubing Sections
  • Patterned After OEM Bends for a Factory Fit

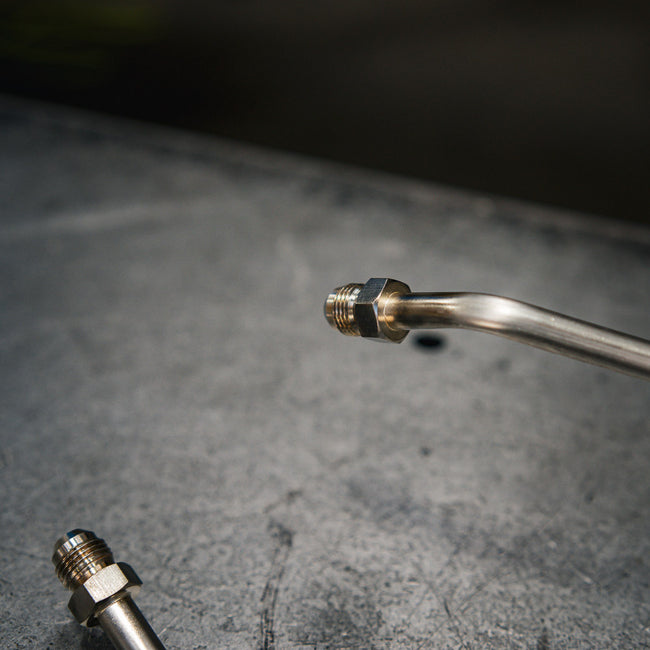

  • Manufactured with Standard 37° AN Fittings
  • Tubing Sections are STAINLESS STEEL
  • All Bending, Flaring, and Assembly are Performed in the USA

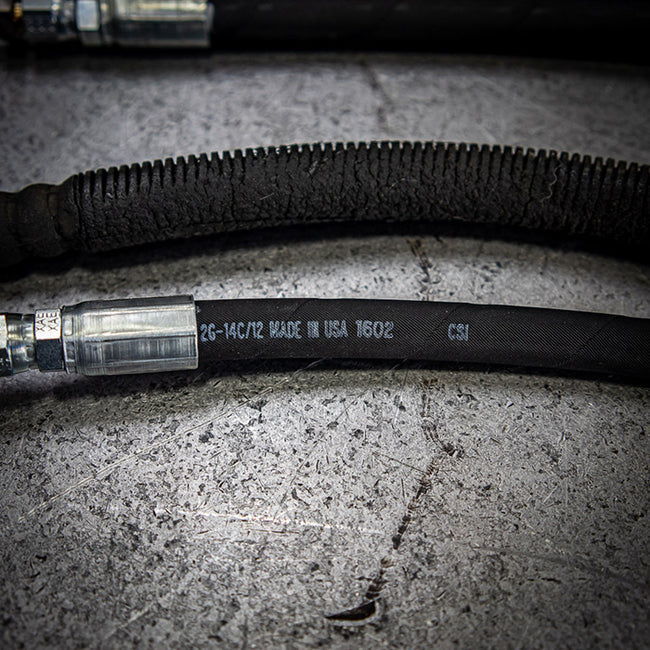

  • Top Quality Hydraulic Hose
  • Will NOT Make Power Steering Pump Louder!
  • Rated for 4000 psi Working Pressure
  • Flame Resistant Outer Jacket
  • The hose is Made in USA
  • Kit Replaces ONLY the 2 Pressure Hose Assemblies
  • Kit Does NOT Include Any Low Pressure Return Hoses
  • No Reused Factory Parts
  • No Cores to Return
  • No Core Charges
  • DETAILED FULL COLOR INSTRUCTIONS

Includes:

  • HydroBoost Inlet line
  • Steering Gear Inlet line
  • Steering Gear Outlet line
