DmaxStore Ultimate Fuel Filter Head Package (Racor), 2001-2016 LB7/LLY/LBZ/LMM/LML



WARNING: Cancer and Reproductive Harm - www.P65Warnings.Ca.Gov

Fits: 2001 thru 2016 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM/LML Duramax Diesel

*See notes below for 2001-2004 LB7 fitment details*

DmaxStore put together this ultimate fuel filter head package, combining all of the upgraded fuel filter head accessories into one easy to buy kit. This fuel filter head assembly eliminates the heater wire from the head that is common to leak on the older style filter heads. We also threw in all of our upgrades for the filter head, including the aluminum bleeder screw, WIF plug, and the filter head spacer. Lastly, the Racor coalescing filter system inside has up to twice the life and improved water removal in all blends and types of diesel fuel when compared to other paper media filters.

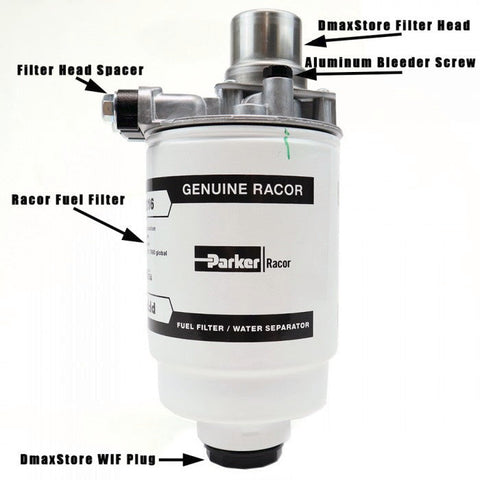

  • (1) DmaxStore Filter Head Assembly (Part# DMAX359)
  • (1) DmaxStore Fuel Filter Head Spacer (Part# DMAX-FHS)
  • (1) DmaxStore WIF Plug (Part# DMAX-WIF)
  • (1) DmaxStore Anodized Aluminum Bleeder Screw (Part# DMAX-BLKBS)
  • (1) Racor Fuel Filter (Part# PFF50216)

DmaxStore Notes:

  • This Part is a direct fit for 2004.5-2016 Chevy/GMC 2500HD/3500 6.6L Duramax.
  • Product can be made to work with 2001-2004 LB7 model years by adding the 3 feet of fuel line option and routing fuel lines like pictured below.
  • This kit is a must for any Duramax owner with more than 4 years on your factory filter head, Don't let a great summer time vacation or road trip be ruined because of filter system component failure.

Cutaway Diagram of the Racor Coalescer Fuel Filter PFF50216

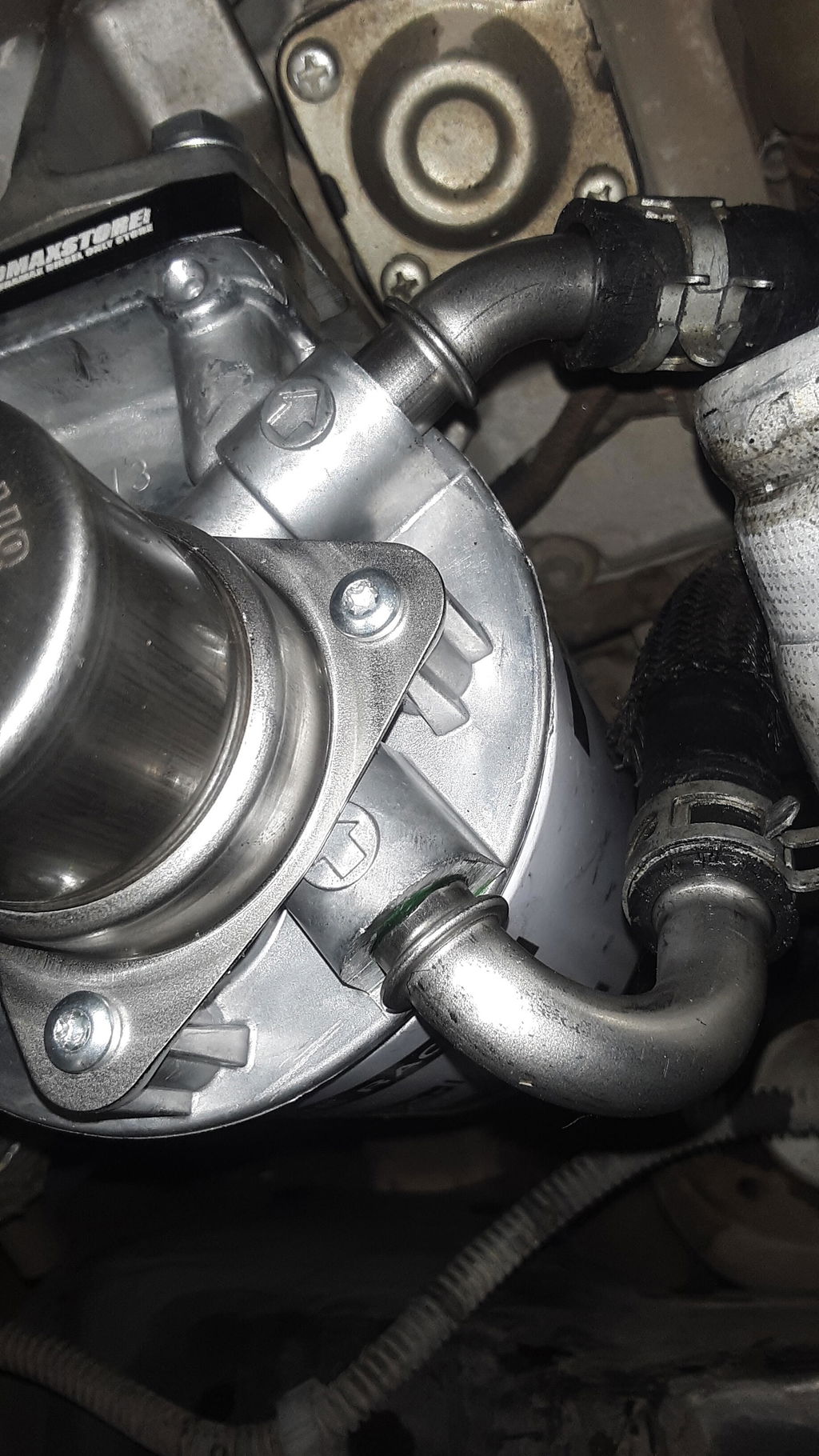

Here is an example of the correctly re-routed fuel lines for 2001-2004 LB7 Engines.
