Fits: 2015 thru 2019 Chevy Silverado/GMC Sierra 2500HD/3500HD LML/L5P Duramax Diesel

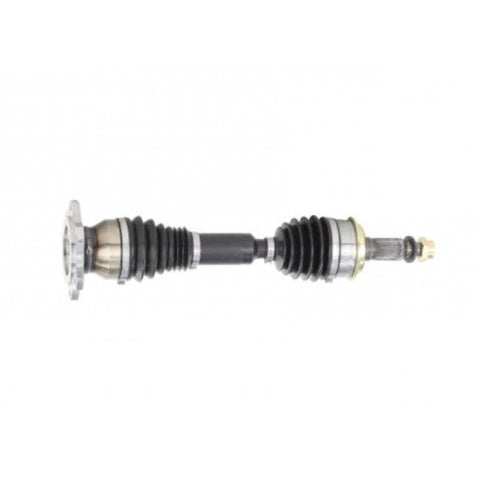

Wearing out CV Axles? DmaxStore has the solution! This extended travel CV Axle Assembly was designed for the rigorous abuse that Duramax owners put their trucks through. This axle allows for a full 47° of articulation versus the 23° that the factory axle allows, making it perfect for leveled and lifted applications. The thermoplastic elastomer boots offer better flex fatigue characteristics, exceptional tear resistance, protection against water, and are less susceptible to temperature fluctuations. The upgraded cages, races, and bearings allow for smooth operation even at the highest degree of articulation unlike it's competitors. This is achieved by using an 8 bearing joint versus the factory 3 bearing joint found in most other options on the market. Rest assured your parts hold up to the test of time as this axles carries a Lifetime Warranty against defect and workmanship.

Features:

• Extended Travel
• Higher Articulation Angle
• Thermoplastic Elastomer Boots
• Upgraded Cages, Races & Bearings
• 8 Ball Socket Design for greater strength and durability
• Lifetime Warranty

Includes:

• 1x CV axle shaft for left or right side
• 1x CV axle nut washer
• 1x CV axle nut, self locking
• Optional Factory Length CV Hardware
• Optional Vibra-Tite

Notes:

• Fits both (driver/passenger) sides
• Optional CV Hardware is factory length - If your truck has a CV Axle Spacer this hardware will NOT work for your application, you must reuse existing hardware

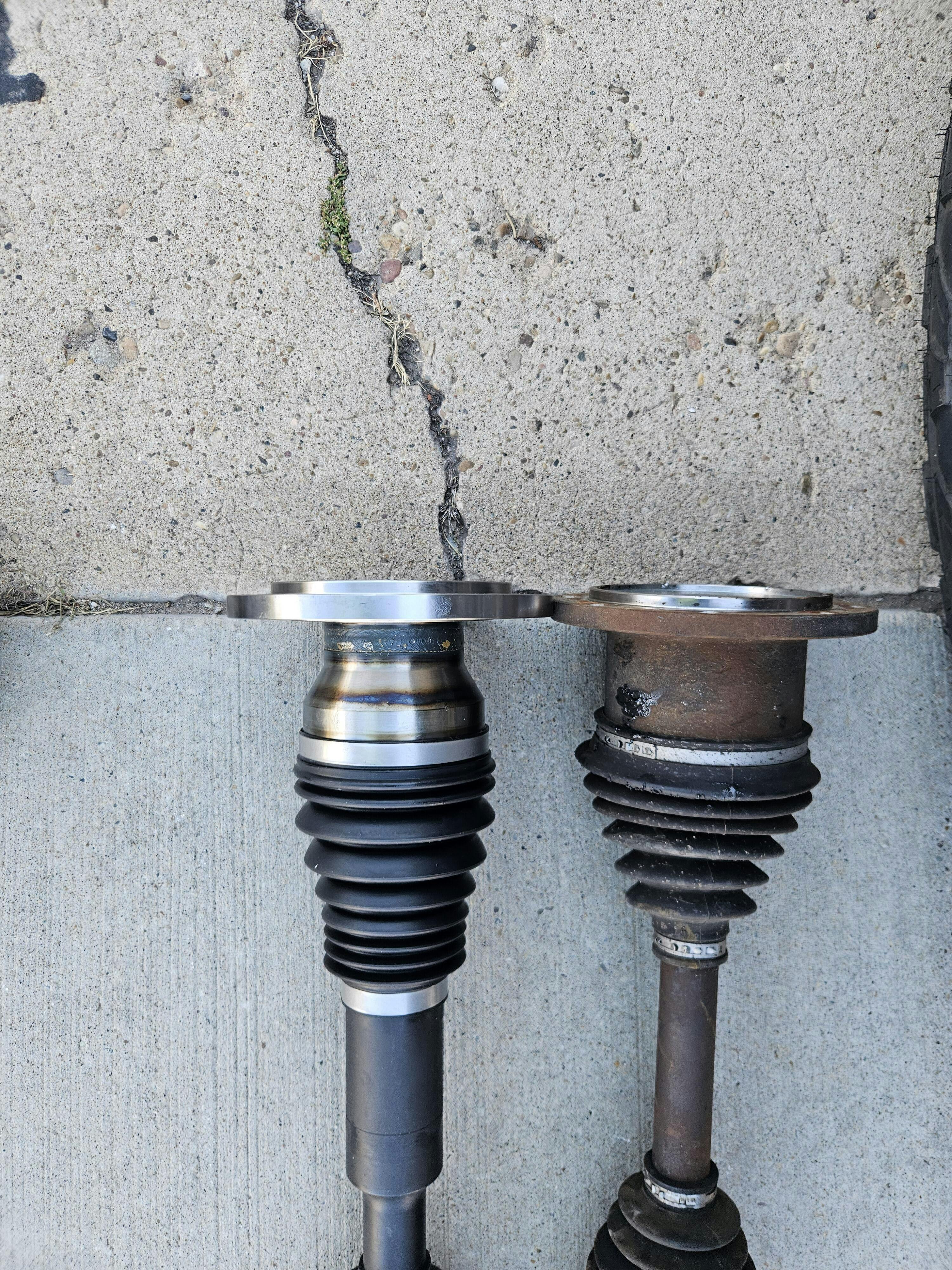

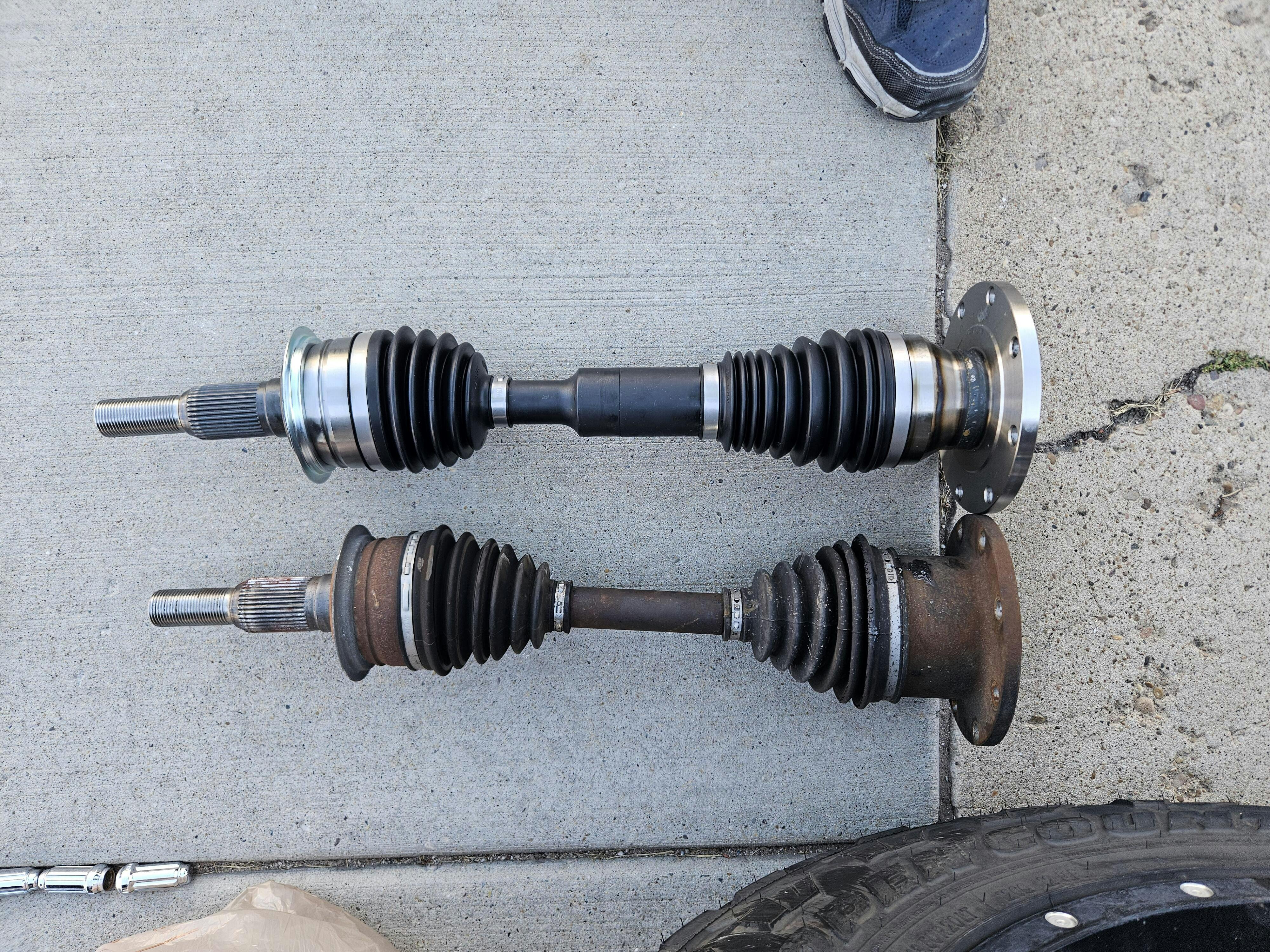

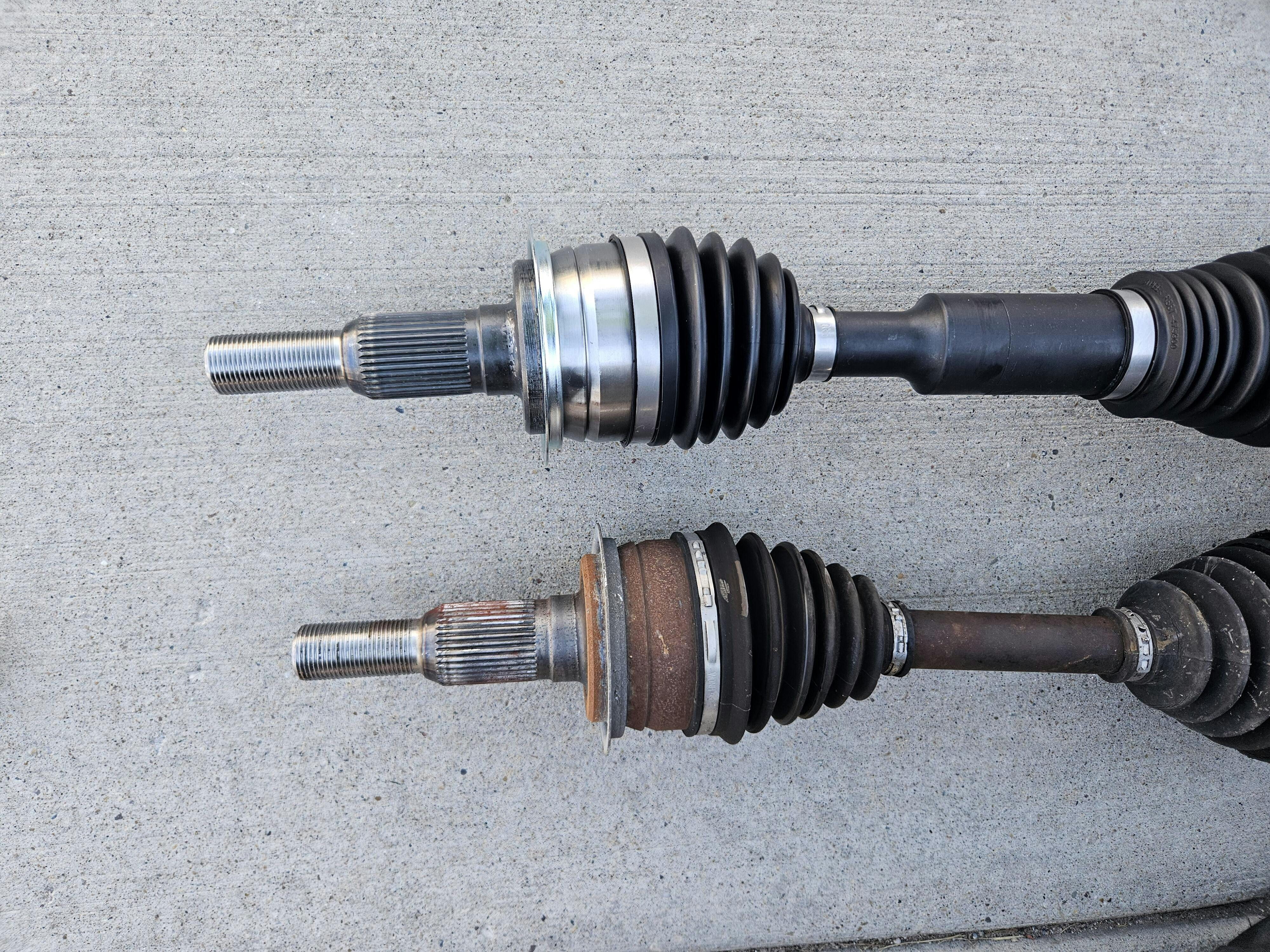

• The Axles Shafts are thicker than stock, this may cause clearance issues on trucks with aftermarket Coilover Shock Lift Kits.
• CV Axle Spacers: You will still need to run them if your truck currently has them installed.
• You will need a 34mm Socket for CV axle nut removal.
• Don't forget to throw on some flashy DmaxStore Valve Stem Caps while under the truck!

Replaces Part#

• 22813485

Warranty:

• DmaxStore CV axles come with a Lifetime warranty to the original purchaser. If a failure occurs, Dmaxstore will replace the failed part only once it has been received at our facility. Shipping costs are not included under the warranty. Some standard wear is not covered.
