Fits: 2001 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM Short Bed 2wd Duramax Diesel

*Please allow 4-6 week lead time on new orders*

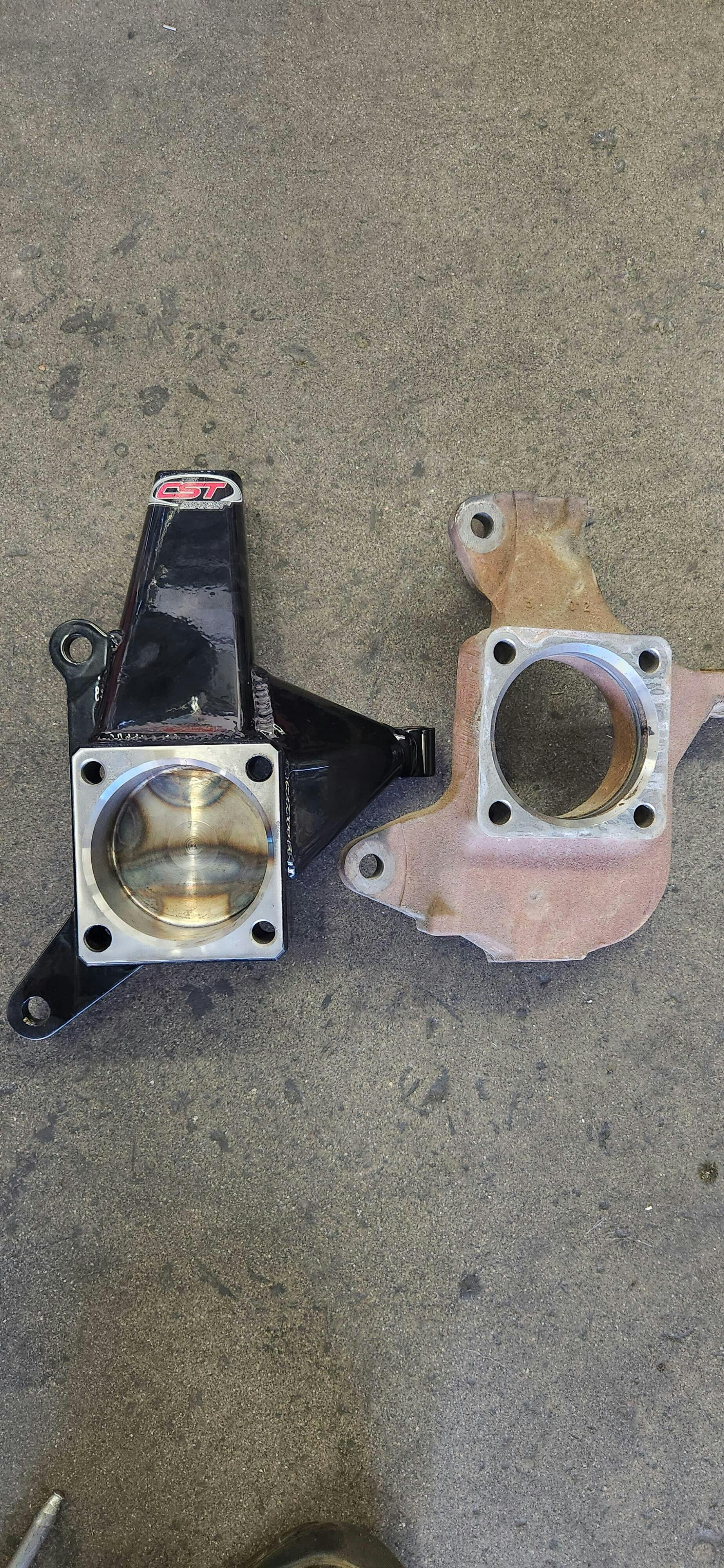

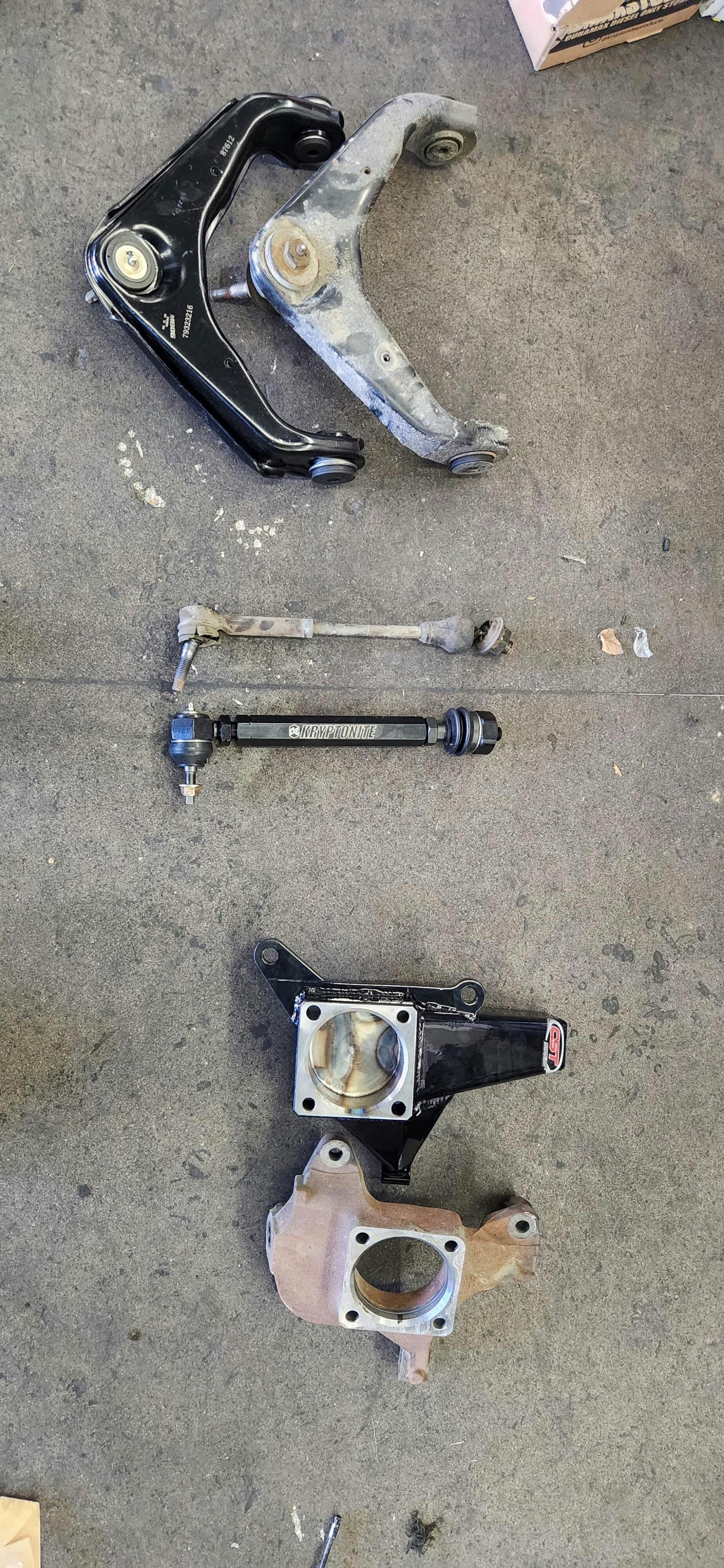

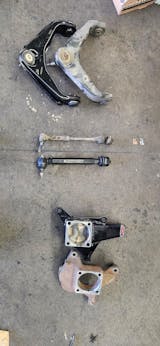

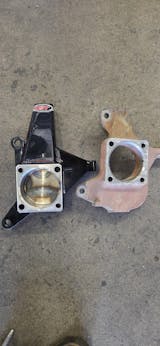

4″ FABRICATED 2WD LIFT SPINDLES, THE HANDS DOWN BEST WAY TO LIFT YOUR CHEVY / GMC HD 2WD 4 INCHES. QUICK INSTALL, STOCK RIDE QUALITY PLUS A TON OF GROUND CLEARANCE! OUR 4″ LIFT SPINDLE KIT WILL ALLOW YOU TO RUN 32-33″ TIRES ON 8-9″ WIDE WHEELS WITH UP TO 5 INCHES OF BACK SPACING.

Features:

• PARTS COVERED IN A TWO-STAGE HIGH QUALITY GLOSS BLACK POWDER COAT FINISH.
• ABILITY TO BE PUT VEHICLE BACK TO STOCK.
• SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4 INCH OR THICKER STEEL.
• CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
• FACTORY RIDE & HANDLING!

Notes:

• SHORT BED TRUCKS ONLY.
• 2WD ONLY
• UPGRADED SHOCKS AVAILABLE & REQUIRED ON 2″ OR LARGER REAR LIFT.
• 5″ MAXIMUM BACK-SPACING ON 17″ WHEELS.
• TRUCK WILL SIT HIGH IN THE FRONT IF YOU ONLY USE SPINDLES!
• STOCK LENGTH (O.E.) SHOCKS WILL WORK IN THE FRONT.

SUGGESTED WHEEL & TIRE SIZES

• 32” x11.5” ON 8-9” WIDE WHEELS
• 33” x12.5” OR SIMILAR ON 8-9” WIDE WHEELS (MINOR TRIMMING REQUIRED)
• 285 / 70 /17 ON 8 OR 9” WIDE WHEELS
• 315 / 70 / 17 ON 8” WIDE WHEELS (MINOR TRIMMING OR TORSION ADJ. REQUIRED)
• 35” X12.5” ON 8-9” WIDE WHEELS (MINOR TRIMMING & TORSION KEYS REQUIRED)
• ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
• MAXIMUM BACKSPACINGNG IS 5″
• ADDITIONAL BACK-SPACING MAY WORK ON 18″ OR LARGER WHEELS, FIT CHECK WHEELS BETWEEN 5-5.25″ BACK-SPACKING BEFORE MOUNTING TIRES.
