Cognito 7" Lift Kit, 2020-2025 L5P
Part# 110-P1032
Fits: 2020 thru 2025 Chevy Silverado/GMC Sierra 2500HD/3500HD L5P Duramax Diesel
*Please Call For Lead Times*
The Cognito Non-Torsion Bar Drop Front Lift kit is designed and engineered to offer superior ride quality and corrected CV joint angles. At the core of this lift package is the performance proven Cognito Front Suspension Lift Kit featuring an integrated skid plate that ties the front and rear cross members together for unmatched front-end rigidity. The kit includes custom fabricated spindles and all bracketry required for installation as well as 5-Inch fabricated rear blocks and new U Bolts for the rear. These parts are hand built here in the USA and finished with a durable semi-gloss black powder coating. The Cognito 5-inch Block and U-Bolt Kit includes 5-inch tall powder coated semi-gloss black cast steel blocks and heavy-duty zinc plated U-bolts.
Features:
- Yields 7-inches of front lift
- Cognito Block and U-Bolt Kit Yields 5-inches of Rear Lift
- Stainless Steel extended brake lines
- SM Series Compression Struts
- Maintains Adequate Droop Travel for Superior Ride Quality
- Allows for up to a 37 x 12.5-Inch Tire on a 10-Inch Wide Wheel with 4.75-Inch Backspacing
- 13-Hour DIY Install Time
- Made in the USA

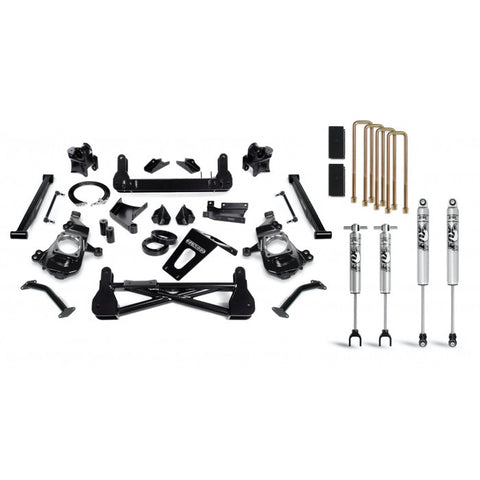

Each Kit Includes:
Standard Lift Kit (Part#110-P1032):- 7" Front Lift Components
- 5" Rear Lift Block and U-bolts
- Fox 2.0 Performance Series IFP Monotube Front and Rear Shocks
Performance Lift Kit (Part#110-P1033):
- 7" Front Lift Components
- 5" Rear Lift Block and U-bolts
- Fox 2.0 Performance Series Remote Reservoir Front and Rear Shocks
- SM Series Ball Joint Upper Control Arms
- Pitman and Idler Arm Support Kit
Requirements:
- Trimming of inner fender well and bottom rear of steel fender may be required
- Follow Cognito's recommended alignment listed on installation manual
- Installation requires a qualified mechanic
- Proper vehicle lifting equipment is required
- Cutting of the service perch and OEM crossmembers is required
- OEM wheels will NOT work with this lift kit
Notes:
- Standard freight is only to the lower 48 states. International, HI, and AK, orders will require an additional shipping charge before order is shipped.
