BDS 6.5" Lift Kit, 2011 -2019 LML/L5P

Part# ‍BDS196H

$2,327.93 Regular price $2,450.45

WARNING: Cancer and Reproductive Harm - www.P65Warnings.Ca.Gov

Fits 2011 thru 2019 Chevy Silverado/GMC Sierra 2500HD/3500HD LML/L5P Duramax Diesel

Enhance the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 6.5-inch lift kit. Featuring a No Torsion Bar Drop System for maximum ground clearance, BDS mounts the torsion bars directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member. This comprehensive kit includes everything needed to equip your truck for clearance for up to 37" tires.

Taking advantage of BDS's high-clearance design, the kit improves ground clearance, strength, and off-road protection while correcting suspension and steering geometry for superior on-road handling. Utilizing torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates at the front, this kit ensures comprehensive off-road protection. CNC-machined ductile iron steering knuckles correct steering geometry at the new taller ride height, maintaining proper function.

Included in the kit are sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, and all necessary hardware for a comprehensive front suspension lift solution.

For the rear, BDS provides replacement lift blocks to achieve a lifted and leveled stance while retaining ride quality and load capacity. A u-bolt flip kit ensures maximum clearance, paired with precision-tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Maximize ground clearance with BDS's heavy-duty 1/4-inch thick laser-cut crossmembers, paired with a front skid plate system that bolsters protection and rigidity.

Correct steering geometry at the new taller ride height with BDS's high-strength, CNC-machined ductile cast iron steering knuckles, ensuring proper function with factory tie rod ends.

Features:

  • High Clearance design eliminates torsion bar drop for maximum ground clearance.
  • Robust steering knuckles ensure ESC system compliance.
  • HD skid plate system enhances off-road protection.
  • Multipoint differential relocation brackets secure the front axle and improve CV angles.
  • Factory Protection Plus drivetrain warranty provides added assurance.

Includes:

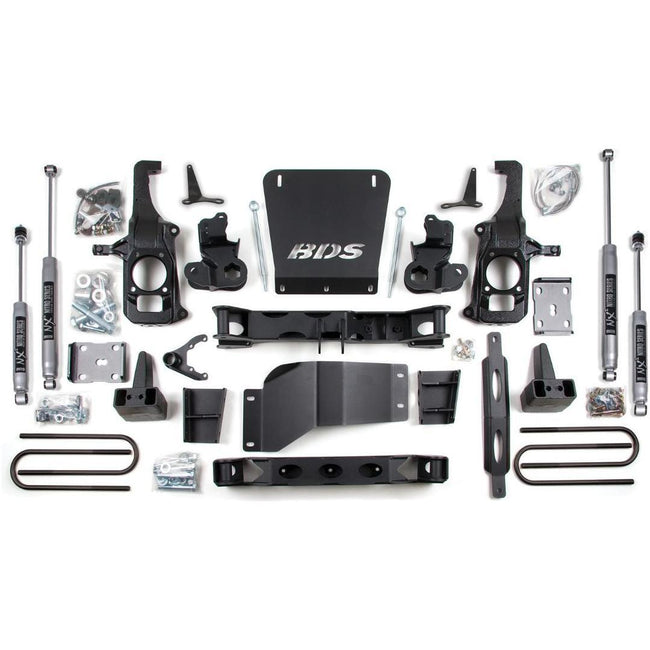

  • NX2 Nitro or Fox 2.0 performance series shocks
  • Torsion bar relocation brackets
  • Steel crossmembers
  • Multipiece differential relocation brackets
  • Heavy duty skid plates
  • CNC-machined ductile steering knuckles
  • Sway bar links
  • Bump stop extensions
  • Stainless steel brake lines
  • CV spacers
  • Rear lift blocks
  • U-bolts
  • Necessary hardware

Notes:

  • Torsion Bar Tool required to load/unload the torsion bars.
  • Requires frame bracket and differential modification
  • 3" rear block kit recommended for dually applications, 5" rear block kit will not fit dually applications.
  • Stock 17" & 18" wheels cannot be reinstalled. Stock 20" can be used with up to a 35.12.50 tire.
  • Factory dually wheels cannot be reinstalled.

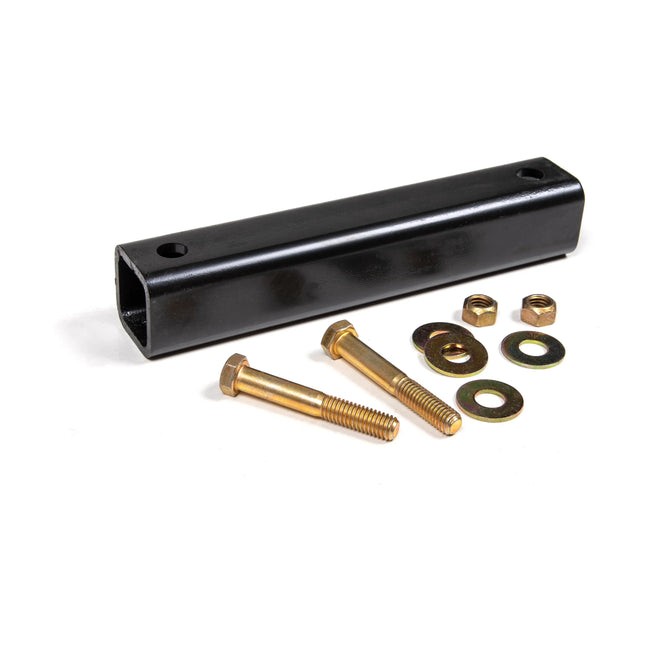

  • Models with two piece rear driveshaft may require Carrier Bearing Spacer Part #121612.
  • If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.

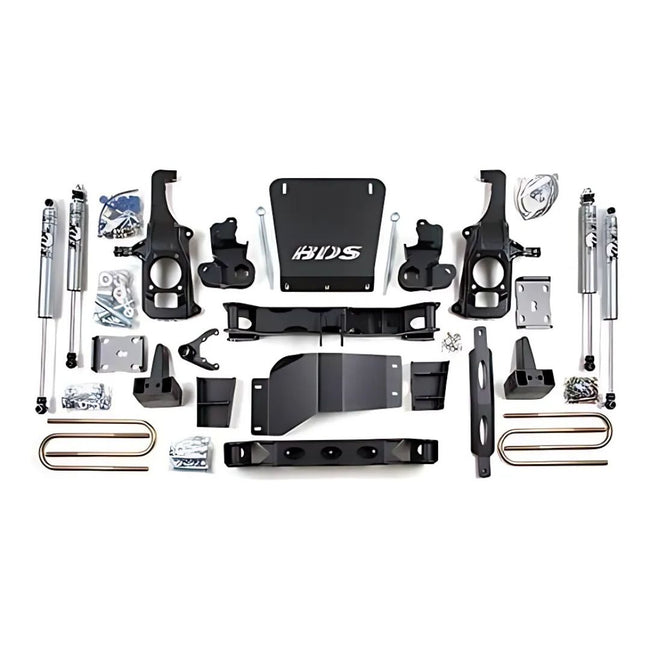

  • Shown with Optional Fox 2.0 Performance Series Shocks
  • All BDS Lift kits are speacial order, Please allow 20-25+ business days before kits ship
  • If shock boots are purchased, you will get 4 shock boots for the front and rear shocks
  • Free Standard freight is only to the lower 48  states.  International, HI, and AK, orders will require an additional shipping charge before order is shipped.
