Fits: 2001 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM Duramax Diesel

The coilover kit that all the 01-10 Duramax trucks have been waiting for is finally here. This system builds on the BDS high clearance system design offering more ground clearance, correct suspension, steering, and driveline geometry. The kit is paired with the race proven pedigree of FOX 2.5 factory series coilovers to soak up the harshest terrain while still offering comfort and control for your daily commute. The coilovers come pretuned and ready to install right out of the box featuring dual speed compression (DSC) adjusters on the reservoir for easy tuning of the high-speed and low-speed compression damping without the need for special tools. To mount the coilovers, BDS supplies a bolt-on bracket that installs on the frame in the shock mount location along with a weld-in support gusset is used to reinforce the upper mount.

In addition to replacing the factory torsion bars, the upper control arms are upgraded to improved strength, travel, and accommodate the new coilovers. The uppers are a new performance series, designed specifically for this system to integrate with the 2.5 Fox Coilovers. The upper control arms are fabricated from large 1.5" x .120" wall tubing, fully welded and gusseted for the highest quality, strength and durability. The factory cast steel lower control arms are retained with the addition of a robust lower coilover mounting bracket. Along with the coilover conversion, these 6.5" lift coilover systems include a pair of one-piece laser cut high clearance crossmembers, CNC machined ductile iron steering knuckles to correct steering angles, heavy duty front skid plate and differential skid plate to increase protection, multipoint differential relocation brackets to secure differential and correct CV axle angles, CV spacers, and longer sway bar links. In the rear a 5" rear block and u-bolt kit(Glide-Ride Leaf Springs optional) is used to level the stance while a set of FOX 2.0 performance series IFP shocks are supplied to pair with the front coilovers for impressive performance wherever your the adventures lead you. This kit will fit 35-37" tires, trimming may be required.

Features:

• FOX 2.5 coil-overs enhance damper performance.
• DSC Adjuster simplifies compression tuning for terrain versatility.
• Performance UCAs boost strength and increase suspension travel.
• High Clearance design maximizes ground clearance without torsion bar drop.
• Robust steering knuckles ensure ESC system compliance.
• HD skid plate system enhances off-road protection.
• Multipoint differential relocation brackets secure front axle and improve CV angles.
• Factory Protection Plus drivetrain warranty included.

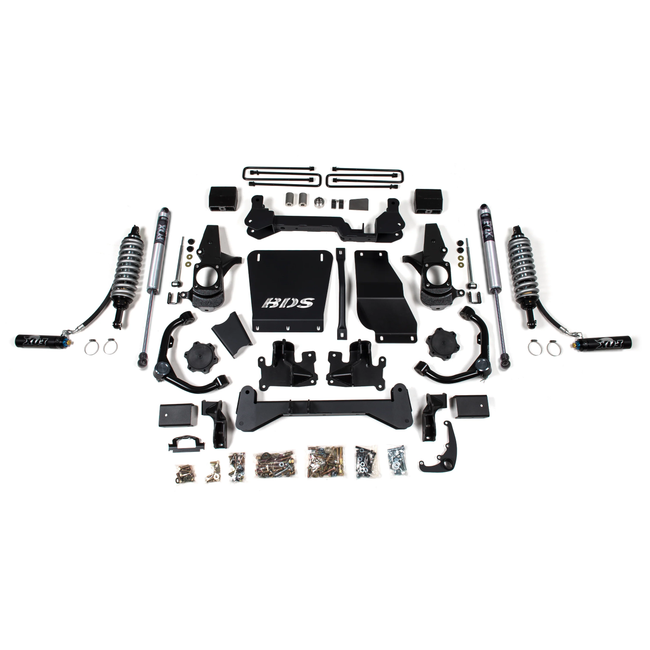

Includes:

• Fully Welded/Gusseted Upper Control Arms with 1.5"x.120" Wall Tubing
• Lower Control Arm Coilover Mounting Brackets
• One Piece Laser Cut High Clearance Crossmembers
• CNC Machined Ductile Iron Standard HD Steering Knuckles
• Heavy Duty Front Skid Plate and Differential Skid Plate
• Multi-Point Differential Relocation Brackets
• CV Spacers
• Longer Sway Bar End Links
• Fox 2.5 Factory Series Front Coilovers with Adjustable Compression
• Fox 2.0 Performance Series IFP Rear Shocks
• 5" Rear Blocks and U-Bolt Kit (Glide-Ride Leaf Springs optional)

Notes:

• Torsion Bar tool required to load/unload the torsion bars.
• Some welding required.
• Requires frame bracket modification and differential mount modification.
• BDS Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift, E-Brake Cable Bracket Relocation May
• 5. 20" wheels with 5"-5.75" backspacing recommended to reduce trimming.
• All BDS Lift kits are special order, Please allow 20-25+ business days before kits ship
• If shock boots are purchased, you will get 2 shock boots for the rear shocks
• Free Standard freight is only to the lower 48  states.  International, HI, and AK, orders will require an additional shipping charge before order is shipped.
